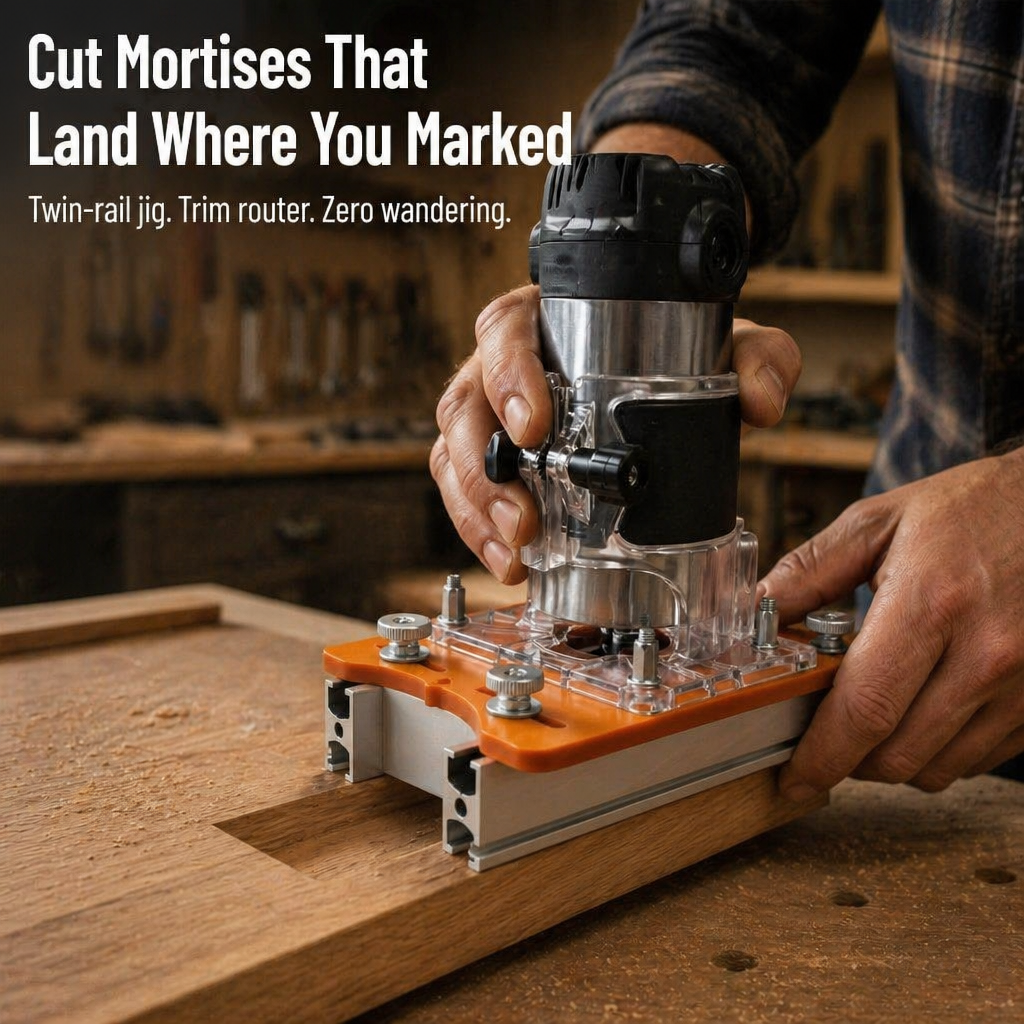

Quit Struggling With a Wandering Router — Make Mortises & Slots That Hit Your Marks Perfectly
Freehand routing is where solid projects go off the rails. The NovaCraft™ Router Mortise & Slot Jig secures your trim router between a pair of aluminum guide rails, locks the bit onto an exact parallel path, and lets you cut crisp mortises, grooves, and hidden fastener slots along any board edge — no wobbling, no tear-out, no do-overs.
Crooked Mortises Aren't About Skill — They're a Setup Issue
You measured it. You marked it. You started cutting clean. Two inches in, the router drifted, the bit veered, and now you have a messy mortise on a piece you can't replace. Compact trim routers lack a proper edge guide, and most aftermarket guides are flimsy plastic that slips the moment you push.

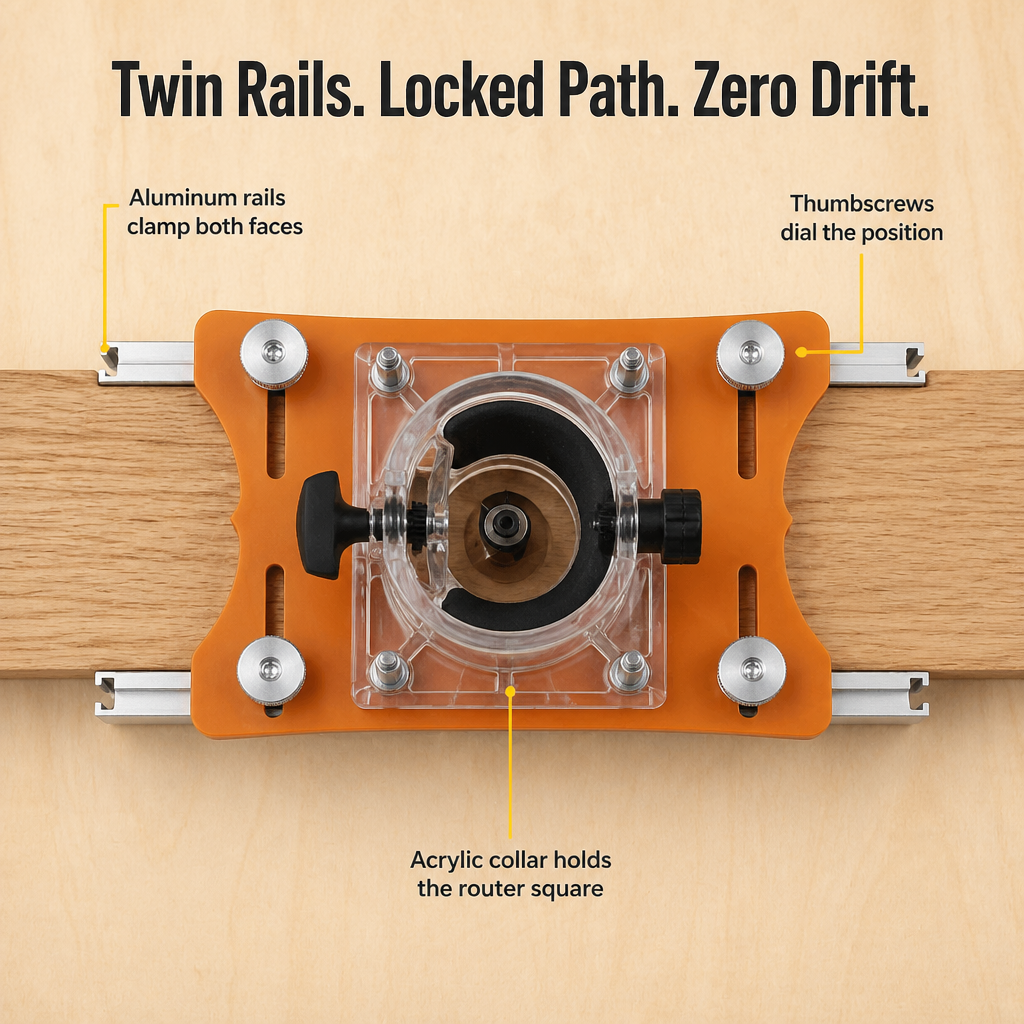

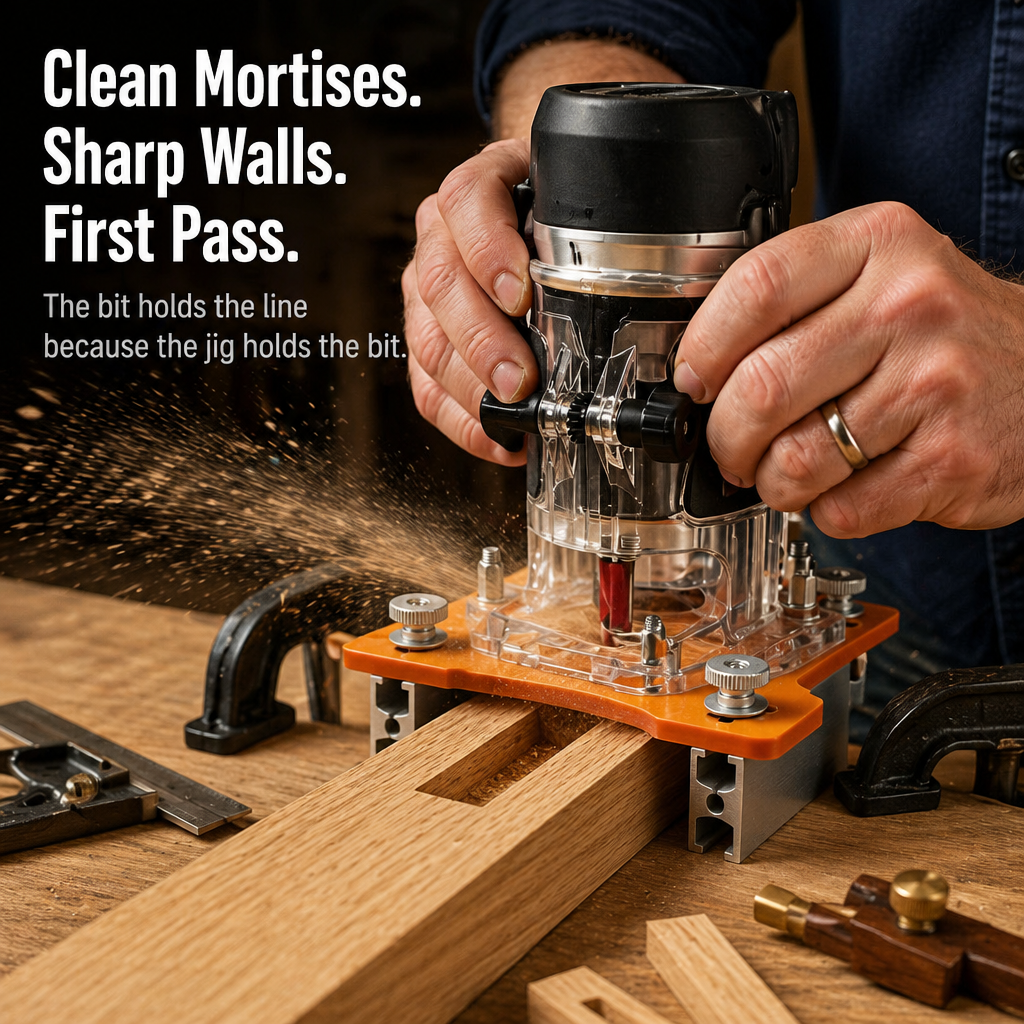

➤ Dual Aluminum Rails Lock the Cut Line: Two anodized aluminum guides clamp firmly on both sides of your workpiece, keeping the router perfectly parallel from start to finish — no drift, no sliding over grain.
➤ Four Thumbscrews Fine-Tune Slot Placement: Hand-tighten knurled thumbscrews to precisely adjust the bit’s distance from the edge. Cut centered mortises, offset grooves, or fastener slots — all with one jig, no shims or calculations needed.
➤ Transparent Acrylic Base, Clear View Layout: See your pencil lines, the bit, and stop marks through a 1/4-inch acrylic plate. Plunge exactly where you planned — every single cut.

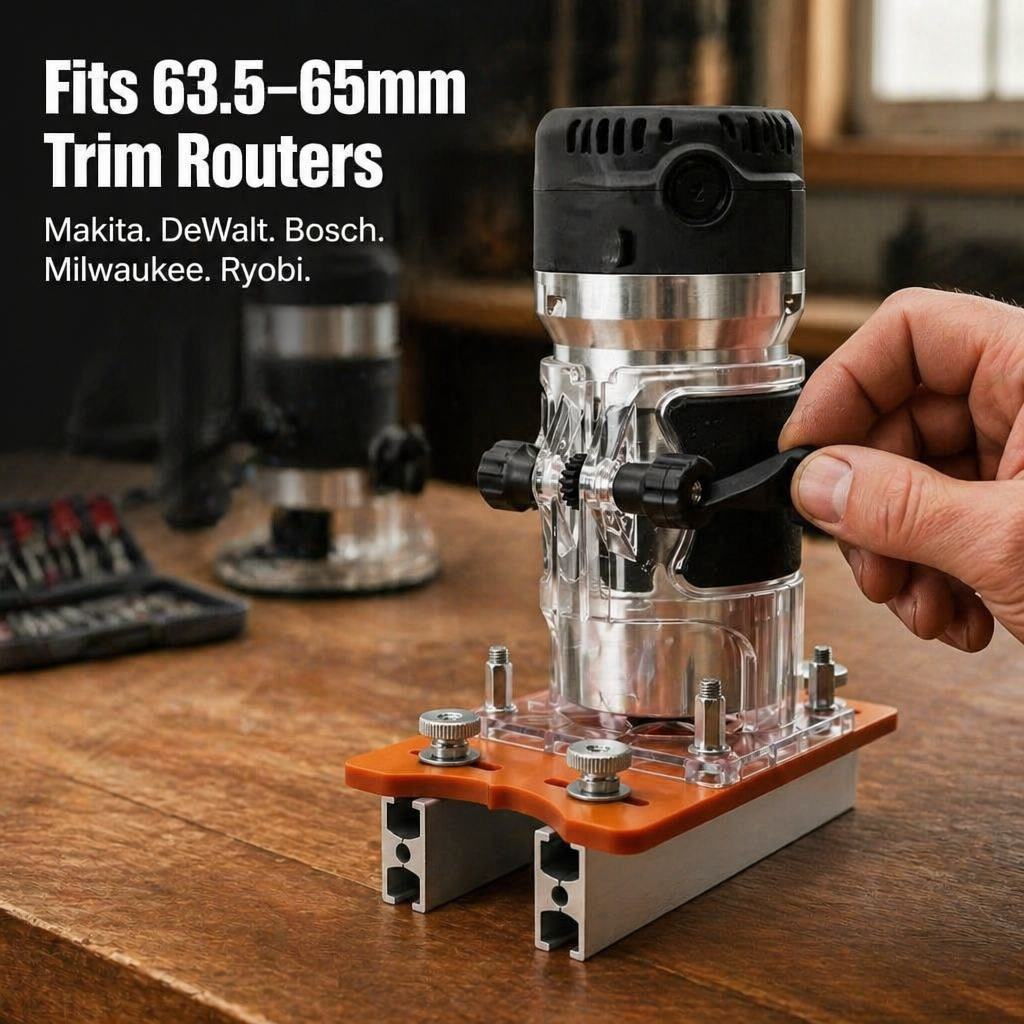

Clamps onto Any 65mm Trim Router — No Drilling or Mods Required
If your compact router’s barrel diameter is between 63.5mm and 65mm — covering most Makita, DeWalt, Bosch, Milwaukee, and Ryobi palm and trim routers — the NovaCraft™ slides on, locks tight, and you’re cutting in under two minutes. The included 1/4-inch shank straight bit (11mm diameter, 30mm cutting length) is perfect for hinge mortises, biscuit slots, and 8mm/10mm concealed fastener grooves right out of the box.
Unlike other guides that flex when you push, the NovaCraft™ aluminum rails sit flush, grip your workpiece like a vise, and let you press down without the jig slipping off the edge.
Why Both Hobbyists & Pros Are Ditching Old Edge Guides for NovaCraft™
Woodworkers who gave up on freehand mortising — the ones who'd pull out chisels for every hinge — are setting NovaCraft™ once and churning out joinery they’d normally hire out. As one customer said: "Wish I’d had this before starting the kitchen. Cut my six bad mortises down to zero."
Cuts You Avoided Before — Now You Knock Them Out Quickly
✓ Consistent Hinge Mortises: Set the rails once, and every door in the run is identical. No swapping templates or measuring twice per door.
✓ Perfect Concealed-Fastener Slots: Cut neat Z-clip and panel connector channels for flat-pack furniture and edge-joined panels — joinery that used to require a $400 specialized jig.
✓ Edges That Look Shop-Made: Anodized aluminum rails won’t bend, knurled steel thumbscrews hold tight through vibration, and the acrylic base resists knocks and resin buildup.
How to Use NovaCraft™: Three Steps to Your First Cut in Under Two Minutes
Step 1: Place your trim router into the clear acrylic collar and hand-tighten the side clamp until the barrel is secured.
Step 2: Slide the twin aluminum rails against both faces of your workpiece and tighten the four thumbscrews — the bit now runs on a fixed path.

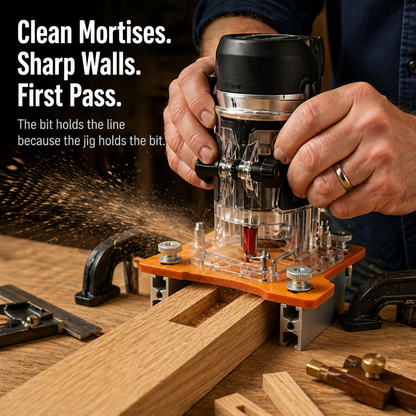

Step 3: Power up, plunge to the desired depth, and route from one stop mark to the other. Lift away, and you’ve got a mortise that fits perfectly first try.
| NovaCraft™ Mortise & Slot Jig | Freehand / Chisel | Generic Plastic Edge Guides |
|---|---|---|
| Tracks perfectly parallel along edges with twin aluminum rails | ❌ Wanders, relies on a steady hand | ❌ Single rail, flexes under pressure |
| Cuts mortises and concealed fastener slots from a single setup | ❌ Different tools needed for each cut | ❌ Mortising only, no fastener slot capability |
| Fits 63.5–65mm trim routers — Makita, DeWalt, Bosch, Milwaukee | ❌ Not applicable | ❌ Often brand-specific, router-locked |

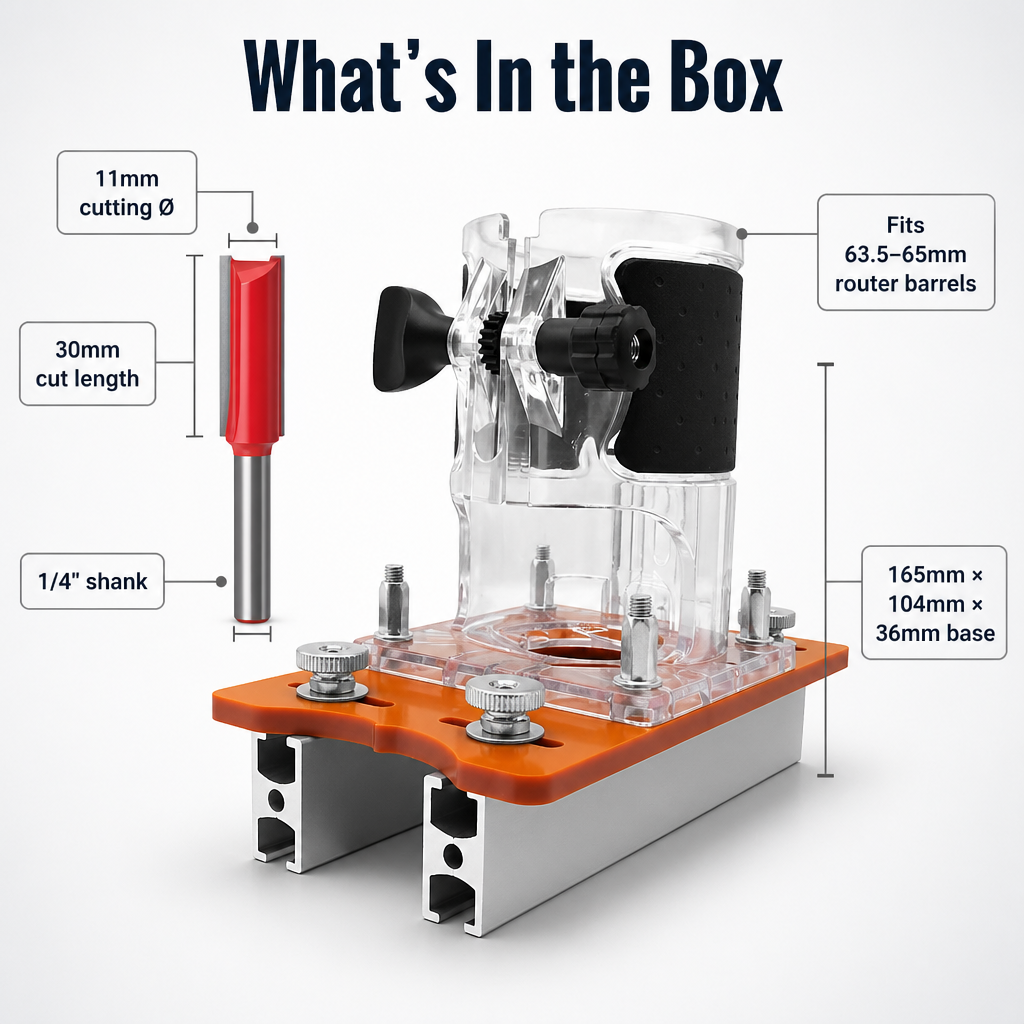

Specifications – What You Really Need to Know
- Type: Dual-Function Router Mortise & Slot Jig
- Functions: Edge Mortising / Slotting + Concealed-Fastener Slot Cutting
- Router Compatibility: 63.5–65mm (2.5"–2.56") barrel diameter — fits most compact / trim / palm routers
- Base Dimensions: 165mm × 104mm × 36mm (6.5" × 4.09" × 1.42")
- Included Bit: 1/4" (6.35mm) shank straight bit — 11mm cutting diameter, 30mm cutting length, 60mm overall
- Build: Anodized aluminum rails, clear acrylic collar, knurled steel thumbscrews
Your Questions, Answered
Will it fit my specific router?
If your trim or palm router’s barrel is between 63.5mm and 65mm — covering Makita RT0700/RT0701, DeWalt DCW600/DWP611, Bosch Colt PR20EVS, Milwaukee 2723-20, and most Ryobi palm routers — it fits right in. Measure your barrel before ordering if unsure.
What kinds of cuts can I make with it?
Hinge mortises, biscuit and domino-style slots, edge dadoes for shelf supports, sliding track channels, and slots for invisible Z-clip fasteners on flat-pack panels. The included 11mm bit fits most common slot widths; you can swap to other 1/4" shank straight bits for narrower or wider cuts.
Is it strong enough for hardwood, or just pine and ply?
The aluminum rails and steel thumbscrews handle oak, walnut, maple, and hardwood plywood without flexing. For dense hardwoods, take two passes to keep the bit cool and the cut clean.
How long does it take to set up the first cut?
Place the router in, clamp the rails to your workpiece, adjust the four thumbscrews, plunge to depth — under two minutes from unboxing to first mortise once you've done it twice.
Crafted Like the Jig You’d Build Yourself — If You Had a CNC and a Free Day

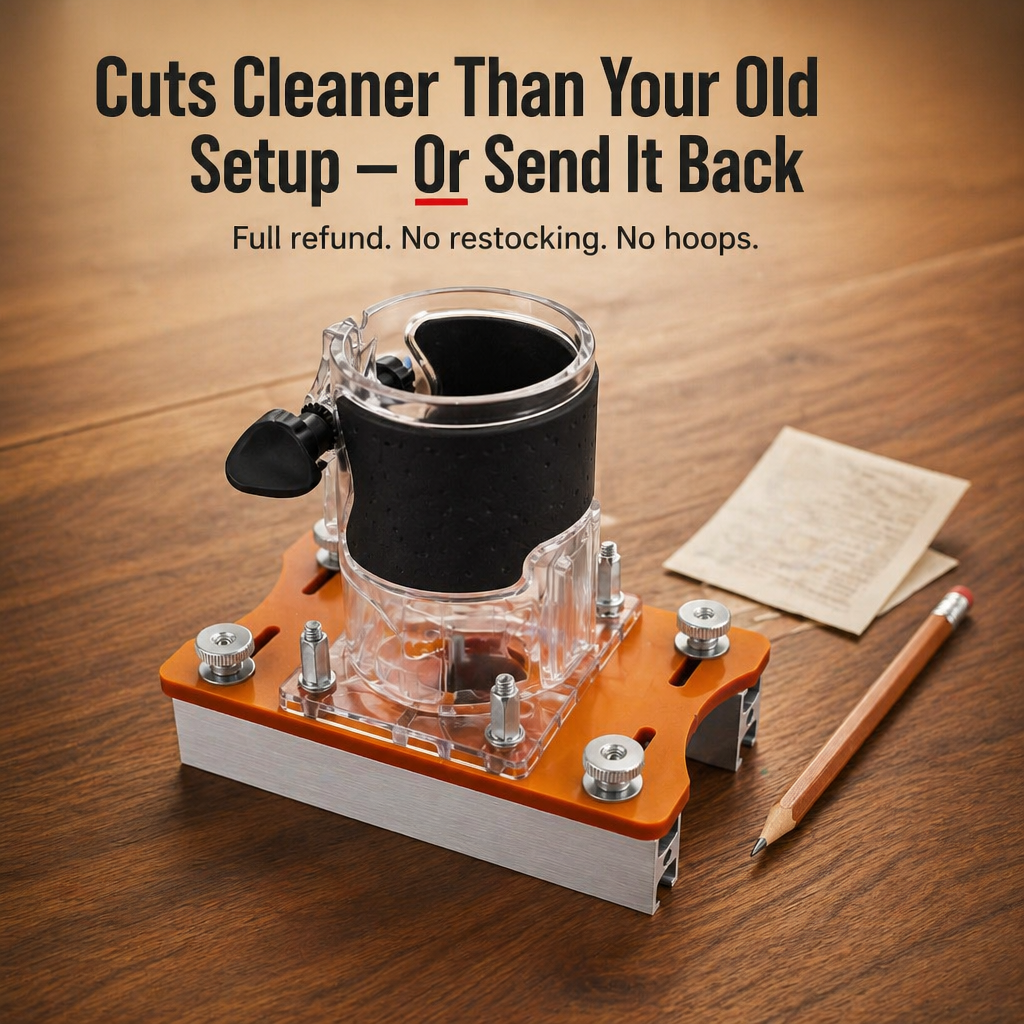

If NovaCraft™ doesn’t deliver cleaner, straighter mortises than your current jig on your very first project, send it back for a full refund. No restocking fees, no proof of how you cut your samples — your workshop, your call.
